Site Assessment Data (SAD)
Site Assessment Data examines the presence of contaminating substances in the soil at a specific location. In this registration object, the investigation concerns the quality of terrestrial soils and drier bank areas, as well as groundwater. In addition, the nature of any contamination is determined: which substances occur in concentrations higher than the natural background value? The extent of the contamination is also assessed by comparing the measured concentrations with the permitted levels based on a national or local regulatory framework.
import matplotlib.pyplot as plt
import pandas as pd
import geopandas as gpd
import brodata
sad = brodata.sad.SiteAssessmentData.from_bro_id("SAD000000011742")
sad
SiteAssessmentData(broId='SAD000000011742')

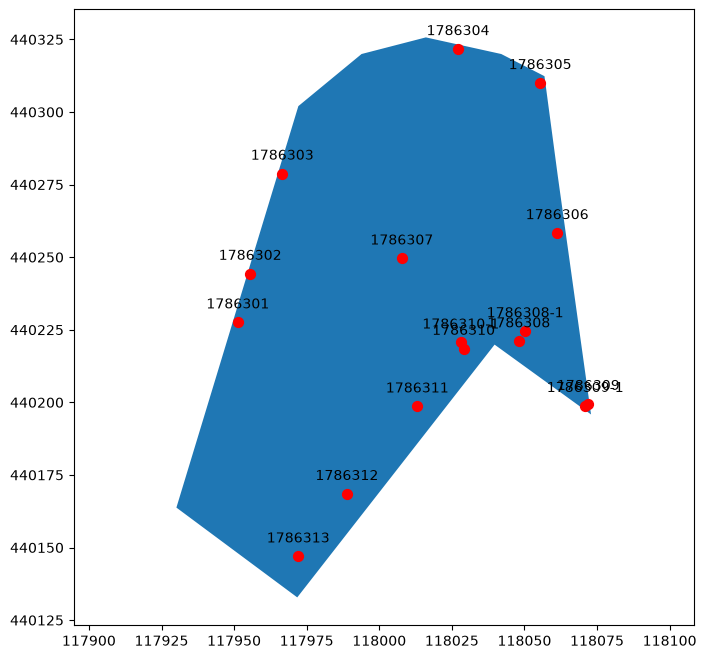

Plot the geometry of the Site Assessment Data, together with the measurementPoints.
fig, ax = plt.subplots(figsize=(8, 8))
gpd.GeoDataFrame(geometry=[sad.geometry]).plot(ax=ax)
sad.measurementPoint.plot(ax=ax, color="red", markersize=50)
for index in sad.measurementPoint.index:
point = sad.measurementPoint.geometry.loc[index]
ax.annotate(index, (point.x, point.y), textcoords="offset points", xytext=(0,10), ha='center')
ax.axis("equal");
Show the contents of the attribute measurementPoint, which is a geopandas GeoDataFrame.
sad.measurementPoint
| identification | date | finalDepth | deliveredLocation | type | localVerticalReferencePoint | descriptionProcedure | DescriptiveBoreholeLog | soilSampling | filter | |
|---|---|---|---|---|---|---|---|---|---|---|
| name | ||||||||||
| 1786301 | d5aeb2f6-fbe6-4dab-8338-09a9bb4c4652 | 2025-03-26 | 2.00 | POINT (117951.29 440227.568) | grondboring | maaiveld | nen5104_nen5706 | {'describedMaterial': 'grond', 'layer': ['iden... | 0 0 None 1 None 2 None 3 None | NaN |
| 1786302 | c3e50bd2-3d6b-41ce-b71d-633784f799c2 | 2025-03-26 | 2.00 | POINT (117955.549 440244.311) | grondboring | maaiveld | nen5104_nen5706 | {'describedMaterial': 'grond', 'layer': ['iden... | 0 0 None 1 None 2 None 3 None 4 None | NaN |
| 1786303 | 0b4a8d42-1a25-4fbf-b30e-99166815738d | 2025-03-26 | 2.00 | POINT (117966.602 440278.795) | grondboring | maaiveld | nen5104_nen5706 | {'describedMaterial': 'grond', 'layer': ['iden... | 0 0 None 1 None 2 None 3 None 4 None | NaN |
| 1786304 | 7315763d-422a-47f1-9f23-e6b0505fe4f5 | 2025-03-26 | 2.00 | POINT (118027.136 440321.689) | grondboring | maaiveld | nen5104_nen5706 | {'describedMaterial': 'grond', 'layer': ['iden... | 0 0 None 1 None 2 None 3 None | NaN |
| 1786305 | 598f2cca-8639-40e2-8404-2596258dd0b5 | 2025-03-26 | 2.00 | POINT (118055.42 440309.992) | grondboring | maaiveld | nen5104_nen5706 | {'describedMaterial': 'grond', 'layer': ['iden... | 0 0 None 1 None 2 None 3 None 4 None | NaN |
| 1786306 | bfadbfe1-7ea7-4d06-a2de-68a81a9c2966 | 2025-03-26 | 2.00 | POINT (118061.285 440258.317) | grondboring | maaiveld | nen5104_nen5706 | {'describedMaterial': 'grond', 'layer': ['iden... | 0 0 None 1 None 2 None 3 None 4 None | NaN |
| 1786307 | f851f3e0-08cd-41e3-8590-23de72745343 | 2025-03-25 | 2.00 | POINT (118007.777 440249.585) | grondboring | maaiveld | nen5104_nen5706 | {'describedMaterial': 'grond', 'layer': ['iden... | 0 0 None 1 None 2 None 3 None | NaN |
| 1786308 | 07a262ea-06ac-4c85-8a88-6369e483e38d | 2025-03-25 | 2.00 | POINT (118048.065 440221.046) | grondboring | maaiveld | nen5104_nen5706 | {'describedMaterial': 'grond', 'layer': ['iden... | 0 0 None 1 None 2 None 3 None | NaN |
| 1786309 | 84150bc8-8cef-413a-bf60-7951c3864886 | 2025-03-25 | 2.00 | POINT (118071.992 440199.493) | grondboring | maaiveld | nen5104_nen5706 | {'describedMaterial': 'grond', 'layer': ['iden... | 0 0 None 1 None 2 None 3 None 4 None | NaN |
| 1786311 | e4e115c5-3a7b-45a0-a40a-9ecbee2df7a6 | 2025-03-25 | 2.00 | POINT (118013.102 440198.623) | grondboring | maaiveld | nen5104_nen5706 | {'describedMaterial': 'grond', 'layer': ['iden... | 0 0 None 1 None 2 None 3 None 4 None | NaN |
| 1786312 | db14a17e-1a77-4305-87c4-5321c4dc7184 | 2025-03-25 | 2.00 | POINT (117988.862 440168.481) | grondboring | maaiveld | nen5104_nen5706 | {'describedMaterial': 'grond', 'layer': ['iden... | 0 0 None 1 None 2 None 3 None | NaN |
| 1786313 | ee9383df-b0c1-46e6-8ee7-f13f5c92512f | 2025-03-25 | 2.00 | POINT (117972.091 440146.97) | grondboring | maaiveld | nen5104_nen5706 | {'describedMaterial': 'grond', 'layer': ['iden... | 0 0 None 1 None 2 None 3 None | NaN |
| 1786310 | 890f9988-072e-4213-a9df-8590f6a3dfc1 | 2025-03-25 | 2.50 | POINT (118029.056 440218.484) | peilbuis | maaiveld | nen5104_nen5706 | {'describedMaterial': 'grond', 'layer': ['iden... | 0 0 None 1 None 2 None 3 None 4 Non... | identification name l... |
| 1786310-1 | 38616f6b-e6e1-4751-abda-986052c9722e | 2025-03-25 | 0.71 | POINT (118028.085 440220.654) | inspectiegat | maaiveld | nen5104_nen5706 | {'describedMaterial': 'grond', 'layer': ['iden... | NaN | NaN |
| 1786308-1 | ed5c1f57-16bb-40d2-9bcd-d32b6bb63b4f | 2025-03-25 | 0.71 | POINT (118050.243 440224.537) | inspectiegat | maaiveld | nen5104_nen5706 | {'describedMaterial': 'grond', 'layer': ['iden... | NaN | NaN |
| 1786309-1 | bfdeb6dc-41f1-42fc-86a5-1f2a0b10b5c8 | 2025-03-25 | 0.71 | POINT (118070.937 440198.794) | inspectiegat | maaiveld | nen5104_nen5706 | {'describedMaterial': 'grond', 'layer': ['iden... | NaN | NaN |

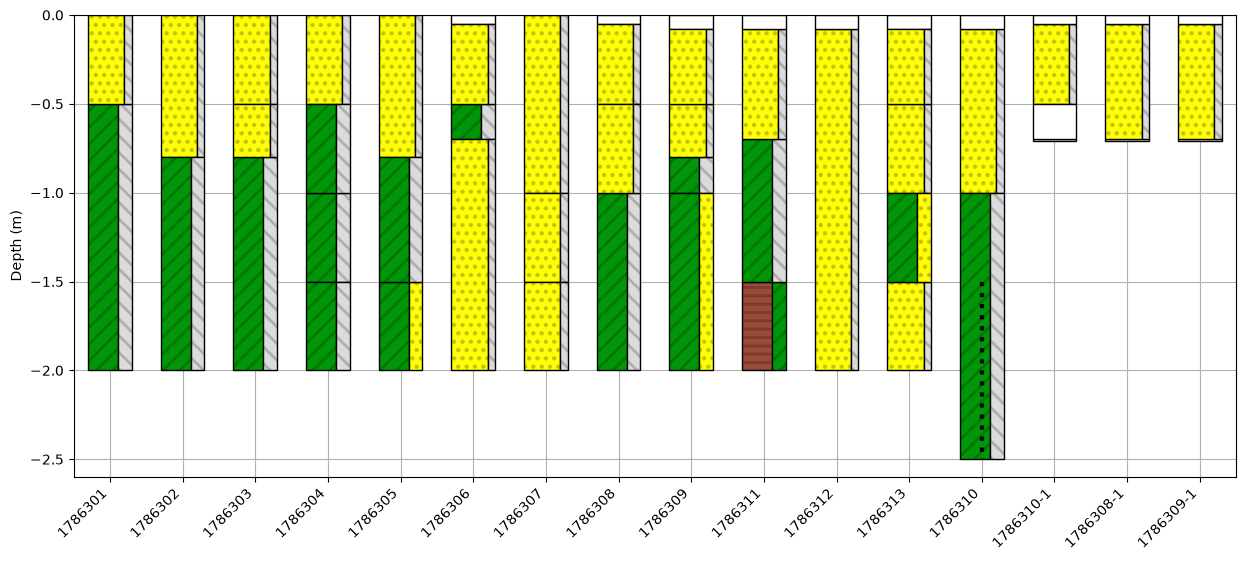

Plot lithology logs for all measurement points.
f, ax = plt.subplots(figsize=(15,6))
for i, name in enumerate(sad.measurementPoint.index):
df = sad.measurementPoint.at[name,'DescriptiveBoreholeLog']['layer']
brodata.plot.bro_lithology_advanced(df, x=i, width=0.6, soil_name_column='soilName', ax=ax, bro_id=name)
# plot filter if available
if isinstance(sad.measurementPoint.at[name,'filter'], pd.DataFrame):
fs = sad.measurementPoint.at[name,'filter']
for fi in fs.index:
y = [ -fs.at[fi,'upperBoundary'], -fs.at[fi,'lowerBoundary'] ]
ax.plot([i, i], y, color='k', linewidth=3, linestyle=':', solid_capstyle="butt")
ax.set_xlim(-0.5, len(sad.measurementPoint) - 0.5)
ax.set_xticks(range(len(sad.measurementPoint)))
ax.set_xticklabels(sad.measurementPoint.index, fontdict={'rotation':45, 'ha':'right'})
ax.set_ylim(-sad.measurementPoint['finalDepth'].max()-0.1, 0.0)
ax.set_axisbelow(True)
ax.grid(True)
ax.set_ylabel('Depth (m)');
Sampling analysis results for a measurement filter are stored as a pandas DataFrame.
name = "1786310"
filters = sad.measurementPoint.at[name, "filter"]
df = filters.iloc[0]['groundwaterSampleAnalysis']
# add the parameter description
parameter_list = brodata.gar.get_parameter_list()
# add a description when a parameter is in the parameter list
df["parameter_description"] = ""
for index in df.index:
param = df.at[index, "parameter"]
if param in parameter_list.index:
df.at[index, "parameter_description"] = parameter_list.at[param, "description"]
df
| identification | quantity | parameter | analysisMeasurementValue | limitSymbol | condition | groundwaterSampling_identification | groundwaterSampling_name | groundwaterSampling_date | groundwaterSampleAnalysis_identification | groundwaterSampleAnalysis_name | parameter_description | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 8f067b9a-05b8-4710-ab42-40af03694d76 | massaConcentratie | 1200 | 25.000 | LT | 85 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | |
| 1 | 7f48a0aa-e115-4b71-8c6c-0bd9c5068d14 | massaConcentratie | 1200 | 25.000 | LT | 98 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | |
| 2 | c2d9295f-7473-4e37-8339-aa8e41657877 | massaConcentratie | 1200 | 25.000 | LT | 113 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | |
| 3 | baccdac8-8fa4-42fe-a532-3fc93284dfbc | massaConcentratie | 1200 | 25.000 | LT | 121 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | |
| 4 | 7182b999-459d-47cf-9695-cc61983c4672 | massaConcentratie | 1200 | 50.000 | LT | 92 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | |
| 5 | 056fc4ac-0cc7-4181-9c5e-f18167c91ab6 | massaConcentratie | 48 | 0.200 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | 1,3-dichloorpropaan |
| 6 | 8ceca005-ec15-44be-beda-f7c0875136d1 | massaConcentratie | 10 | 0.200 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | 1,1-dichloorpropaan |
| 7 | 4fd91d8a-cdf8-43a2-beea-5b770848abd7 | massaConcentratie | 517 | 1.000 | LT | 9 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | chroom |
| 8 | 8a599883-8e64-4cf7-b07b-51a77faeb318 | massaConcentratie | 527 | 2.000 | LT | 9 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | kobalt |
| 9 | 6876b702-f562-4390-acb0-757383bd7ab1 | massaConcentratie | 1267 | 3.000 | LT | 9 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | nikkel |
| 10 | fdf8b709-e3a8-44b2-9b82-6a12749c83c3 | massaConcentratie | 971 | 2.000 | LT | 9 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | koper |
| 11 | 710b38bb-1ed0-44e5-b68b-3ec4f19ae284 | massaConcentratie | 1693 | 10.000 | LT | 9 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | zink |
| 12 | 90f33d1a-e759-48c4-98fa-f17fe09344e6 | massaConcentratie | 1243 | 2.000 | LT | 9 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | molybdeen |
| 13 | 14ebdce8-2f6d-4486-93f2-829fede3656d | massaConcentratie | 441 | 0.200 | LT | 9 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | cadmium |
| 14 | dbaa644a-4d6d-4a59-94a4-121f3fcbd77f | massaConcentratie | 622 | 0.420 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | |
| 15 | 602f8387-f32d-4a49-8f86-b6ba546c5812 | massaConcentratie | 333 | 45.000 | NaN | 9 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | barium |
| 16 | e220323e-dd69-47cb-85d6-1faa256ff795 | massaConcentratie | 1097 | 0.050 | LT | 9 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | kwik |
| 17 | a852e7e8-b210-4e2e-a5fb-5c4c3e563579 | massaConcentratie | 1116 | 2.000 | LT | 9 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | lood |
| 18 | a256e2a2-2c12-4b5f-85f1-151e8cdcc754 | massaConcentratie | 2719 | 0.770 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | |
| 19 | 0a7de4a6-9ef7-426f-a683-fe4c8b0ac08c | massaConcentratie | 342 | 0.200 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | benzeen |
| 20 | 1123253b-7038-4877-995c-6b5e584f5820 | massaConcentratie | 728 | 0.200 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | ethylbenzeen |
| 21 | 7436d8e3-fcd1-47b6-940e-bf40fbc5e922 | massaConcentratie | 1568 | 0.200 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | tolueen |
| 22 | aae623cb-918b-4cc9-ad1e-e96610318967 | massaConcentratie | 1686 | 0.210 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | som xyleen-isomeren |
| 23 | 2f61b6e7-96fd-49eb-9def-9a26f507edc9 | massaConcentratie | 1143 | 0.200 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | som 1,3- en 1,4-xyleen |
| 24 | defca23d-416e-4eb6-9ad7-c949189e0370 | massaConcentratie | 1341 | 0.100 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | 1,2-xyleen |
| 25 | 7e4a6ee2-63b7-4b54-bfa4-78ef77451262 | massaConcentratie | 1259 | 0.020 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | naftaleen |
| 26 | 0bd1892f-818a-4a56-8164-4cba757b14a1 | massaConcentratie | 1352 | 0.014 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | som 10 polycyclische aromatische koolwaterstof... |
| 27 | 6814d693-ab2e-4cd6-b6b9-2dbd1efd4389 | massaConcentratie | 519 | 0.140 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | som dichlooretheen-isomeren |
| 28 | ed067890-3550-4c29-879c-e7bfd787f114 | massaConcentratie | 9 | 0.100 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | 1,1-dichlooretheen |
| 29 | d577913a-02ef-45ca-a486-a232bea64abd | massaConcentratie | 520 | 0.100 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | cis-1,2-dichlooretheen |
| 30 | 98390419-b214-4108-9cd7-6806b57c1755 | massaConcentratie | 1578 | 0.100 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | trans-1,2-dichlooretheen |
| 31 | 6f60c0c0-c06e-4ee2-9582-307c6863559c | massaConcentratie | 619 | 0.200 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | dichloormethaan |
| 32 | 6f8ca281-28a9-485c-9783-c7c4b1735d4d | massaConcentratie | 1711 | 0.200 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | trichloormethaan (chloroform) |
| 33 | 4639b553-46f6-497c-b911-a6ae2780a852 | massaConcentratie | 1590 | 0.200 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | tribroommethaan |
| 34 | 854d4ec0-5481-40b4-b3b7-bc351ad98df4 | massaConcentratie | 1538 | 0.100 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | tetrachloormethaan (tetra) |
| 35 | c102326d-ec34-4210-9e2a-85d5f28b4885 | massaConcentratie | 8 | 0.200 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | 1,1-dichloorethaan |
| 36 | c9283a62-20d7-4597-8066-e374dc948bc8 | massaConcentratie | 36 | 0.200 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | 1,2-dichloorethaan |
| 37 | 0805cb7c-3988-4427-8f2b-fb43fa0f7424 | massaConcentratie | 38 | 0.200 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | 1,2-dichloorpropaan |
| 38 | bbd02ed8-49c6-4832-8bbe-25da760073bc | massaConcentratie | 4 | 0.100 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | 1,1,1-trichloorethaan |
| 39 | 4e2649d0-171c-4720-bee3-cf7e16337fb9 | massaConcentratie | 6 | 0.100 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | 1,1,2-trichloorethaan |
| 40 | b34fdb27-bc4c-4aca-85f1-473ae4cab1de | massaConcentratie | 1598 | 0.200 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | trichlooretheen (tri) |
| 41 | 3c608d12-4c21-4b9c-b6b0-9c2630c2efcc | massaConcentratie | 1536 | 0.100 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | tetrachlooretheen (per) |
| 42 | 73faf5fb-def9-4e9f-8430-7b8c4c2a7caa | massaConcentratie | 1503 | 0.200 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | styreen |
| 43 | baa369b1-3306-4917-b363-cde935519de4 | massaConcentratie | 1654 | 0.200 | LT | 8 | 14138b75-c586-4b1c-af1e-d76f2f67da0e | 1786310-1-1 | 2025-04-02 | 96a07cd0-727b-4596-ae8a-f940fb3378a1 | 1786310-1-1 | chlooretheen (vinylchloride) |
Display the mixedSampleAnalysis attribute, a DataFrame containing mixed-sample analyses.
sad.mixedSampleAnalysis
| identification | name | beginDepth | endDepth | analysis | soilSampling | |
|---|---|---|---|---|---|---|
| 0 | 85e66d4b-7809-4734-acf1-4be8f8a1e2d0 | M01 | 0.00 | 0.50 | identification ... | href 0 #BRO_0084 1 #BRO_0059 2 #BRO... |
| 1 | e41563c3-59d3-49a3-b204-bc4ad157a9aa | M02 | 0.50 | 1.50 | identification ... | href 0 #BRO_0042 1 #BRO_0087 2 #BRO... |
| 2 | d422142c-96f3-4a24-9680-7ae83a64a2dd | M03 | 0.00 | 0.50 | identification ... | href 0 #BRO_0428 1 #BRO_0308 2 #BRO... |
| 3 | 6c21d6da-ffb9-4221-9fdf-a16dcd231780 | M04 | 0.00 | 0.50 | identification ... | href 0 #BRO_0190 1 #BRO_0327 2 #BRO... |
| 4 | 639fe570-bc50-4986-ad04-facfcba8f599 | M06 | 0.50 | 1.00 | identification ... | href 0 #BRO_0271 1 #BRO_0429 2 #BRO... |
| 5 | 69b354ac-efdb-4fb9-bec6-256c80a80915 | M07 | 0.50 | 1.00 | identification ... | href 0 #BRO_0184 1 #BRO_0360 2 #BRO... |
| 6 | a83bda92-76f8-4e26-987e-925df98e417d | M08 | 0.50 | 1.00 | identification ... | href 0 #BRO_0198 1 #BRO_0125 |
| 7 | cab867bf-bb09-48c8-b019-5e20a6887f46 | M09 | 1.00 | 1.50 | identification ... | href 0 #BRO_0427 1 #BRO_0287 2 #BRO... |
The analysis column contains a DataFrame with analysis results per sample. Show the results for the first sample.
sad.mixedSampleAnalysis.iloc[0]['analysis']
| identification | quantity | parameter | analysisMeasurementValue | limitSymbol | condition | |
|---|---|---|---|---|---|---|
| 0 | d8aa4bf2-0488-44fa-b8be-5a580f0e11a2 | massaFractie | 1200 | 5.000 | LT | 86 |
| 1 | 5340951a-dacf-4bdd-9268-b376c75bc062 | massaFractie | 1200 | 16.000 | NaN | 99 |
| 2 | 61772fe3-2066-4efb-9b92-b8c706febe8f | massaFractie | 1200 | 34.000 | NaN | 114 |
| 3 | b08242ae-729e-4f32-9efb-4ac806972249 | massaFractie | 1200 | 36.000 | NaN | 122 |
| 4 | 70d2c581-a020-49dc-9451-758d728fc29e | massaFractie | 1365 | 13.320 | NaN | 1 |
| 5 | 80d95f40-ef32-4fd1-824a-6a8e0eff4579 | massaFractie | 1200 | 90.000 | NaN | 93 |
| 6 | 17362962-9965-4931-8030-87aabb0161fd | massaFractie | 527 | 5.900 | NaN | 1 |
| 7 | 143e259b-3d48-4199-80b7-a65a03787a91 | massaFractie | 1267 | 27.000 | NaN | 1 |
| 8 | c4fabf3b-ae83-42c2-8692-acad1c4776af | massaFractie | 971 | 26.000 | NaN | 1 |
| 9 | 1cdcb8b9-de19-4d16-9f27-e83575577ee0 | massaFractie | 1693 | 120.000 | NaN | 1 |
| 10 | b489bd80-d6fa-4912-9337-52c9a1f63162 | massaFractie | 1243 | 2.700 | NaN | 1 |
| 11 | 516ab173-c285-40f9-bf4e-f8ba42fd6a86 | massaFractie | 441 | 0.420 | NaN | 1 |
| 12 | bda51b31-9849-4346-bf60-83b723cec5a8 | massaFractie | 333 | 76.000 | NaN | 1 |
| 13 | fee9a558-847b-4fb1-b6b5-1bfcd011a41f | massaFractie | 1097 | 0.200 | NaN | 1 |
| 14 | fcd02bb1-ca02-49b5-b193-09100d55119e | massaFractie | 1116 | 350.000 | NaN | 1 |
| 15 | 5363f4d1-c95c-4783-bf7d-b0cbb5f0fd30 | massaFractie | 1259 | 0.030 | LT | 1 |
| 16 | f7e3a69e-c71e-4bb0-b54c-16d03a111387 | massaFractie | 299 | 0.870 | NaN | 1 |
| 17 | 533e5dcf-2094-4081-a1b2-51f048721f80 | massaFractie | 746 | 2.500 | NaN | 1 |
| 18 | b228b0e0-072e-49fe-b19e-96099f83bc7a | massaFractie | 775 | 8.900 | NaN | 1 |
| 19 | fee3f11e-b04e-46b1-9152-f620d9d38822 | massaFractie | 518 | 4.500 | NaN | 1 |
| 20 | 182a6c79-6408-4cf2-90e4-cf327a12eaea | massaFractie | 345 | 4.500 | NaN | 1 |
| 21 | b50a2133-cd3d-4838-adbb-e802f275589a | massaFractie | 346 | 4.300 | NaN | 1 |
| 22 | cceb9cc3-4f06-47f6-b0a4-2644a5ce05d7 | massaFractie | 353 | 2.200 | NaN | 1 |
| 23 | 1597a492-09f2-484c-abfe-24a0c767db58 | massaFractie | 882 | 3.400 | NaN | 1 |
| 24 | 7916a9b2-5f7e-43dc-8632-f1995b3a81f0 | massaFractie | 351 | 3.500 | NaN | 1 |
| 25 | b8bab18c-b57f-4642-a621-4d6465f54325 | massaFractie | 1352 | 34.691 | NaN | 1 |
| 26 | a95f5150-98d0-4eee-a984-4b7712fda844 | massaFractie | 1381 | 1.800 | LT | 1 |
| 27 | aef3bd6e-25c3-4b17-9c18-6656ba3884c4 | massaFractie | 1382 | 2.100 | LT | 1 |
| 28 | 0e16be7c-0787-47da-b942-92a95e8e2284 | massaFractie | 1372 | 1.700 | LT | 1 |
| 29 | 4e31c05a-1280-4d44-886e-43fd7076c6d7 | massaFractie | 1374 | 2.000 | LT | 1 |
| 30 | 2d0c50c4-eda0-49e0-ac01-1c761f617d70 | massaFractie | 1376 | 2.200 | NaN | 1 |
| 31 | 3e863953-57a2-4469-8c0d-fdbadf3a8e42 | massaFractie | 1377 | 2.700 | NaN | 1 |
| 32 | fb6ad047-7c52-4184-b854-53a9a3c6bbb7 | massaFractie | 1380 | 3.100 | NaN | 1 |
| 33 | 4b0fb2ef-a0a2-4a11-bc1c-ba15ead14c9c | massaFractie | 692 | 84.600 | NaN | 1 |
| 34 | a5f15230-a1fc-4112-8451-03a767923bf1 | korrelgrootteFractie | NaN | 5.400 | NaN | 2 |
| 35 | e7a59c4c-af69-4a40-859a-1d1acfe734f3 | massaFractie | 1319 | 6.000 | NaN | 1 |
Show the rest of the contents of the Site Assessment Data.
sad_data = sad.to_dict()
sad_data.pop("measurementPoint")
sad_data.pop("mixedSampleAnalysis")
sad_data
{'broId': 'SAD000000011742',
'coordinateTransformation': 'RDNAPTRANS2018MV0',
'corrected': 'nee',
'deliveryAccountableParty': '62251686',
'deliveryContext': 'archiefoverdracht',
'deregistered': 'nee',
'geometry': <MULTIPOLYGON (((117930.133 440163.759, 117971.751 440132.831, 118039.715 44...>,
'id': 'BRO_0931',
'identification': '9e9c4fef-943a-4196-afdc-53520dc02315',
'investigationReason': 'onbekend',
'name': 'Verkennend bodemonderzoek Spoorstraat 11 in Schoonhoven',
'objectRegistrationTime': '2025-07-28T07:46:08+02:00',
'projectType': 'verkennendOnderzoekNEN5740',
'qualityRegime': 'IMBRO/A',
'registrationCompletionTime': '2025-07-28T07:46:08+02:00',
'registrationStatus': 'voltooid',
'report': {'number': 'PD212185',
'date': '2025-04-17',
'author': 'vanderhelm Milieubeheer B.V.'},
'reportDate': '2025-04-17',
'reregistered': 'nee',
'standardizedLocation': <GEOMETRYCOLLECTION (MULTIPOLYGON (((4.848 51.949, 4.849 51.948, 4.85 51.949...>,
'underReview': 'nee'}
